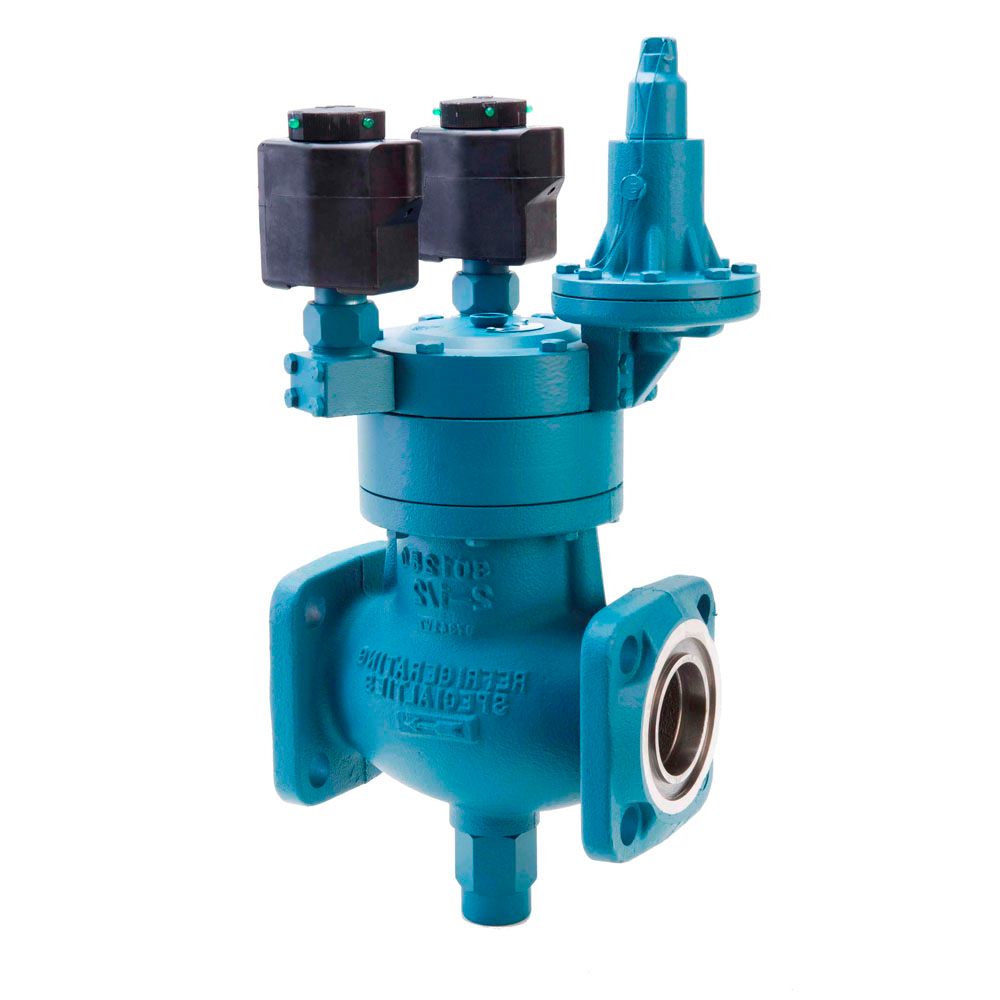

Parker CK-2D Dual Position Gas Powered Suction Stop Valves
Parker CK-2D Dual Position Gas Powered Suction Stop Valve
Part Kits
|
CK-2D Dual Position Gas Powered Suction Stop Valve Parts |
||||||
|
Number |
Description |
QTY |
Parker Part Number |
|||
|
2 in. |
2-1/2 in. |
3 in. |
4 in. |
|||
|
16 |
Gasket, Body |
1 |
|
|
|
|
|
17 |
Piston Plug |
1 |
|
|
|
|
|
17,16 |
Piston Plug Kit |
1 |
||||
|
19 |
Opening Stem |
1 |
|
|
|
|
|
22 |
Washer, Flat |
1 |
|
|
|
|
|
23 |
Packing, Stem |
1 |
|
|
|
|
|
19,22,23 |
Opening Stem Kit |
1 |
||||
|
25 |
Gasket, Seal Cap |
1 |
|
|
|
|
|
26 |
Seal Cap |
1 |
|
|
|
|
|
25,26 |
Seal Cap Kit |
1 |
||||
|
23 |
Packing, Stem |
1 |
|
|
|
|
|
24 |
Packing Nut, Stem |
1 |
|
|
|
|
|
23,24 |
Packing Kit |
1 |
||||
|
10 |
Gasket, Adapter |
1 |
|
|
|
|
|
11 |
Piston, Top |
1 |
|
|
|
|
|
12 |
Spacer, Piston |
3 |
|
|
|
|
|
13 |
Set Screw, Piston |
1 |
|
|
|
|
|
14 |
Nut, Piston |
1 |
|
|
|
|
|
10-14 |
Piston Kit |
1 |
||||
|
6 |
Gasket, Cover |
1 |
|
|
|
|
|
8 |
Bolt, Adapter |
6 |
|
|
|
|
|
10 |
Gasket, Adapter |
1 |
|
|
|
|
|
11 |
Piston, Top |
1 |
|
|
|
|
|
12 |
Spacer, Piston |
3 |
|
|
|
|
|
13 |
Set Screw, Piston |
1 |
|
|
|
|
|
14 |
Nut, Piston |
1 |
|
|
|
|
|
15 |
Bore Plate |
1 |
|
|
|
|
|
16 |
Gasket, Body |
1 |
|
|
|
|
|
20 |
Bolt, Body |
8 |
|
|
|
|
|
6,8,10-16,20 |
Piston/Bore Plate Kit |
1 |
||||
|
3 |
O-ring |
4 |
|
|
|
|
|
4 |
Bolt, Cover |
8 |
|
|
|
|
|
5 |
Cover |
1 |
|
|
|
|
|
6 |
Gasket, Cover |
1 |
|
|
|
|
|
8 |
Bolt, Adapter |
8 |
|
|
|
|
|
9 |
Adapter |
1 |
|
|
|
|
|
10 |
Gasket, Adapter |
1 |
|
|
|
|
|
3-6,8-10 |
Adapter/Cover Kit |
1 |
||||
|
2 |
Bolt |
4 |
|
|
|
|
|
3 |
O-ring |
2 |
|
|
|
|
|
2,3 |
Bolt/O-ring Kit |
1 |
||||
|
1 |
Plunger/Tube Asm |
1 |
|
|
|
|
|
21 |
Solenoid Tube O-Ring |
1 |
|
|
|
|
|
29 |
Seat |
1 |
|
|
|
|
|
1,21,29 |
Plunger/Seat Kit |
1 |
||||
|
3,6,10,16,21,25 |
Gasket/O-ring Kit |
1 |
||||
| Sku | Coil Type | Flange Type | Connection Size | Pilot Connection Flange Type | Pilot Connection Size | Port Size | Solenoid Type | Strainer Type | Valve Material | Coils | Flange Style | Price | Qty | Add To Cart | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 CK2D 3/8F 4SW B120/110 | CK2DA0BF10SP0T1NSN See Details |
110/50, Leaded, Standard | SW | 4 in | FPT | 3/8 in | 100mm (4 in) | S6B | No Strainer | Standard Valve |
|
|||||
| 4 CK2D 3/8F 4SW B240/220 | CK2DA0BF10SP0W1NSN See Details |
220/50, Leaded, Standard | SW | 4 in | FPT | 3/8 in | 100mm (4 in) | S6B | No Strainer | Standard Valve |
|
|||||
| 4 CK2D 3/8F 4WN B120/110 | CK2DA0BF10WP0T1NSN See Details |
110/50, Leaded, Standard | WN | 4 in | FPT | 3/8 in | 100mm (4 in) | S6B | No Strainer | Standard Valve |
|
|||||
| 4 CK2D 3/8F B120/110 | CK2DA0BF10X00T1NSN See Details |
110/50, Leaded, Standard | No Flange | None | FPT | 3/8 in | 100mm (4 in) | S6B | No Strainer | Standard Valve |
|
|||||
| 4 CK2D 3/8F | CK2DA0BF10X00X0NSN See Details |
No Coil | No Flange | None | FPT | 3/8 in | 100mm (4 in) | S6B | No Strainer | Standard Valve |
|
|||||
| 4 CK2D 1/2S 4SW B120/110 | CK2DA0BS13SP0T1NSN See Details |
110/50, Leaded, Standard | SW | 4 in | SW | 1/2 in | 100mm (4 in) | S6B | No Strainer | Standard Valve |
|
|||||
| 4 CK2D 1/2S 4WN B120/110 | CK2DA0BS13WP0T1NSN See Details |
110/50, Leaded, Standard | WN | 4 in | SW | 1/2 in | 100mm (4 in) | S6B | No Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D 3/8F 1-1/2SW A120 | CK2D40AF10S38B1NSN See Details |
120/60, Leaded, Standard | SW | 1 1/2 in | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D 3/8F 1-1/2SW A230 | CK2D40AF10S38F1NSN See Details |
230/50, Leaded, Standard | SW | 1 1/2 in | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D 3/8F 2SW A120 | CK2D40AF10S50B1NSN See Details |
120/60, Leaded, Standard | SW | 2 in | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D 3/8F 2SW A120G | CK2D40AF10S50B3NSN See Details |
120/60, Leaded, Green LED Pilot Light | SW | 2 in | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D 3/8F 2SW A120G ST | CK2D40AF10S50B3YSN See Details |
120/60, Leaded, Green LED Pilot Light | SW | 2 in | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | w/ Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D 3/8F 2SW A120 QD | CK2D40AF10S50B4NSN See Details |
120/60, DIN, Standard | SW | 2 in | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D 3/8F A120R ST | CK2D40AF10X00B2YSN See Details |
120/60, Leaded, Red LED Pilot Light | No Flange | None | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | w/ Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D 3/8F A120 QD | CK2D40AF10X00B4NSN See Details |
120/60, DIN, Standard | No Flange | None | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D DN 3/8F | CK2D40AF10X00X0NPN See Details |
No Coil | No Flange | None | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Meets Pressure Equipment Directive (PED) |
|
|||||
| 1-5/8 CK2D 3/8F S6A | CK2D40AF10X00X0NSN See Details |
No Coil | No Flange | None | FPT | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Standard Valve |
|
|||||
| 1-5/8 CK2D DN 3/8S 1-1/2SW A230 QD | CK2D40AS10S38F7NPN See Details |
230/50, DIN, CE Approved | SW | 1 1/2 in | SW | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Meets Pressure Equipment Directive (PED) |
|
|||||
| 1-5/8 CK2D DN 3/8S S6A | CK2D40AS10X00X0NPN See Details |
No Coil | No Flange | None | SW | 3/8 in | 40mm (1 5/8 in) | S6A | No Strainer | Meets Pressure Equipment Directive (PED) |
|
|||||
| 1-5/8 CK2D 1/2S 1-1/2SW A120 | CK2D40AS13S38B1NSN See Details |
120/60, Leaded, Standard | SW | 1 1/2 in | SW | 1/2 in | 40mm (1 5/8 in) | S6A | No Strainer | Standard Valve |
|
|||||
