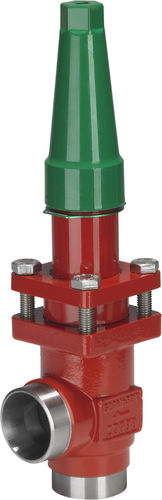

SCA-X 15 A Ang Stop/Check Valve PS52
SCA-X are check valves with a built-in shutoff valve function. CHV-X are check valves only. SCA-X/CHV-X are available in angleway versions. The valves are designed to open at very low differential pressures, allow favorable flow conditions and are easy to disassemble for inspection and service. The SCA-X is equipped with a vented cap and has internal backseating that enables the spindle seal to be replaced while the valve still under pressure. Laser cut V-ports provide excellent opening characteristics (SCA-X/CHV-X 50-125). The valve cone has a built-in flexibility to ensure a precise and tight closing toward the valve seat. A well-balanced dampening effect between the piston and the cylinder provides optimal protection during low loads and against pulsations.
$318.83
SKU: 148B5209
Product Specs
- Valve Type: SCA-X
- Port Size: 1/2" (15mm)
- Connection Type: BW (Butt Weld)
- Valve Finish: Painted
Product Documents
Features
- Applicable to HCFC, HFC, R717 (Ammonia), R744 (CO2), Propane, Butane, Iso-Butane and Ethane.
- Modular Concept: Each valve housing is available with several different connection types and sizes. – Possible to convert SCA-X or CHV-X to any other product in the FlexlineTM SVL family (Hand operated regulating valve, shut-off valve or strainer) just by replacing the complete top part.
- Fast and easy valve overhaul service. It is easy to replace the top part and no welding is needed.
- Designed to open at a very low differential pressure of 0.04 bar (0.58 psig).
- Designed with a built-in damping chamber that prevents valve flutter in case of low refrigerant velocity or low density.
- Each valve is clearly marked with its type, size, and performance range.
- Easy to disassemble for inspection and service.
- Internal backseating enables replacement of the spindle seal while the valve is active, that is, under pressure.
- Max. working pressure: 52 bar g (754 psi g)
- Temperature range: –60°C/+150°C (–76°F/+302°F)
