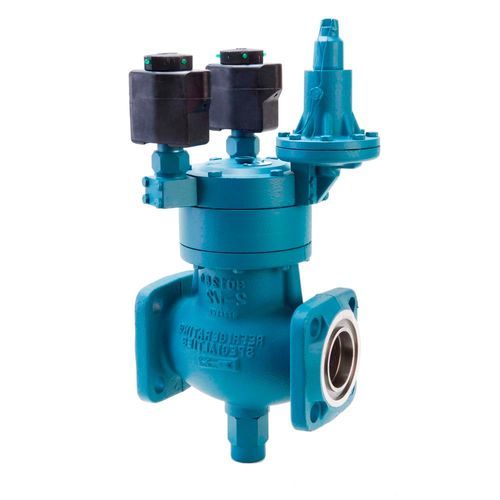

2-1/2 CK6D 3/4S A120
$3,054.63
MPN: CK6D65AS20X00B3NSN
SKU: CK6D65AS20X00B3NSN
SKU: CK6D65AS20X00B3NSN
Product Specs
- Valve Type: CK
- Variation: CK-6D
- Solenoid Type: S6A
- Coil: 120/60
- Strainer: No Strainer
- Valve Material: Standard Valve
- Plated: No Plating
- Coil Style: Leaded, Green LED Pilot Light
- Flange Type: No Flange
- Flange Connection: None
- Pilot Connection Flange Type: SW
- Pilot Connection: 3/4 in
- Port Size: 65mm (2 1/2 in)
Product Documents
2-1/2 CK6D 3/4S A120
Features
- Economical Solution to Evaporator Equalization after Defrost
- Low Pressure Drop
- Heavy Return Spring
- Manual Opening Stem
- Integrated S6B pilot solenoids
- Standard Coil Housing Meets NEMA 3R and 4 - Rain Tight
- Normally Open
- Maximum Rated Pressure (MRP): 27.6 bar (400 psig)
